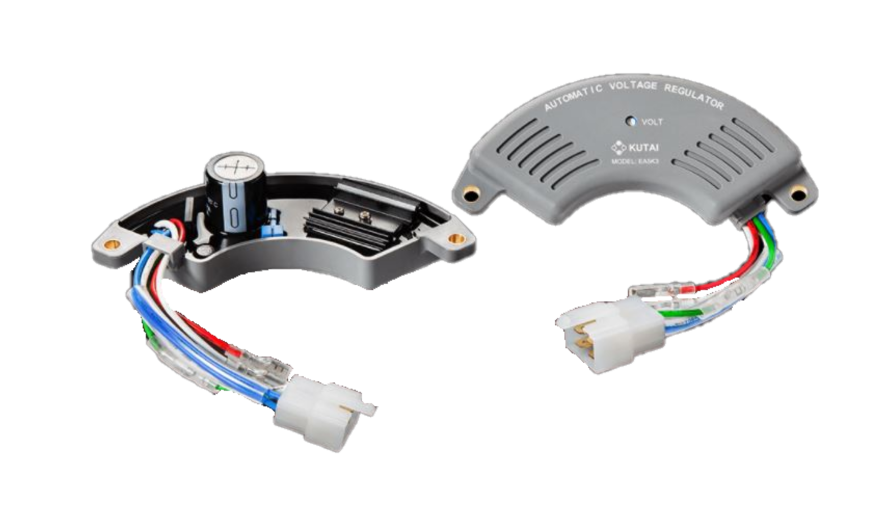

KUTAI SLIP RING AUTOMATIC VOLTAGE REGULATOR FOR SMALL DIESEL / PETROL GENERATOR # EA5K3

EA5K3 is a slip ring half moon shaped AVR for gas and diesel generators. It can replace avrs for ELEMAX, HONDA, KAWSAKI, KUBOTA Low Boy, SUZUKI, SAWAFUJI, YAMAHA generators.
* All manufacturer names and numbers are used for reference purpose only and do not imply that any part is the product of these manufacturer.

• Voltage regulation less than +/-1%
• Full wave rectifier
• Single phase voltage sensing
• Epoxy encapsulated to isolate humidity and increase vibration proof
• Adjustable output voltage *1
• Light weight, durable and economical

Specifications

• Sensing Input: Voltage 16 to 25 Vac 50/60 Hz 1 phase 2 wire
• Power Input: Voltage 60 to 100 Vac 50/60 Hz 1 phase 2 wire
• Excitation Output: Voltage Max. 100 Vdc @ power input 85 Vac / Current Continuous 3A Intermittent 5A for 60 seconds
• Resistance Min. 25 ohms
• Voltage Regulation: Less than +/-1% (with 4% engine governing)
• Build Up Voltage: 2 Vac residual volts at power input terminal
• Voltage Adjust Range: 115/230 Vac +/-15%
• Voltage Thermal Drift: Less than 5% at temperature range -40 to +70 °C

Compatible Replacement

• ELEMAX: SH4000, SH5000, SH6000, SH7000
• HONDA: EP3800, EP5000, EC6500
• KAWASAKI: GE4300A, GE5000AS, PP4000, PP6000
• KUBOTA: GL6500S
• SUZUKI: LTZ400
• SAWAFUJI: SH4600EX, SH5300EX, SH6500EXS, SH7600EX
• YAMAHA: EDL6500S

Environment

• Operating Temperature:-40 to +60 °C
• Storage Temperature: -40 to +85 °C
• Relative Humidity: Max. 90%
• Vibration: 1.5 Gs @ 5 – 30 Hz / 5.0 Gs @ 30 – 500 Hz

Physical Specifications

• Dimensions: 64.5 (L) x 158.2 (W) x 40.0 (H) mm
• Weight: 190 g +/-2%
